Sold Individually

Specs & Features

• Exceeds SFI 16.1 Rating (SFI Tags Affixed)

• NOT D.O.T. / FMVSS Certified for On Highway Use

• Premium 3" Polyester Webbing

• "V" Style Single Mount Shoulder Belts

• Pull Down Style Lap Belt

• 4 Point Design - Single 2" Crotch Strap

• 3" Hardware Ends Installed

• Double Adjustable for Ease of Installation

• Wrap Around or Bolt-on ends (ex. Shoulder)

• Drop-Forged Steel Hardware (no bolts)

• Shoulders Adjust from 26" to 40"

• Lap Belt Adjusts 20" to 60"

• Available in Black

NOTE:

• RaceQuip harness sets and seat belts are NOT D.O.T. / FMVSS 209/302 certified for on highway use. They are only to be used in racing vehicles off of public streets and highways. All racing harness sets are designed to be mounted in a race vehicle to a rollcage or harness bar - if you do not have either, you should not try to install any RaceQuip harness set or seat belts.
• No Mounting bolts are included with any RaceQuip seat belt sets except some FIA sets where eyebolts come standard.

Description

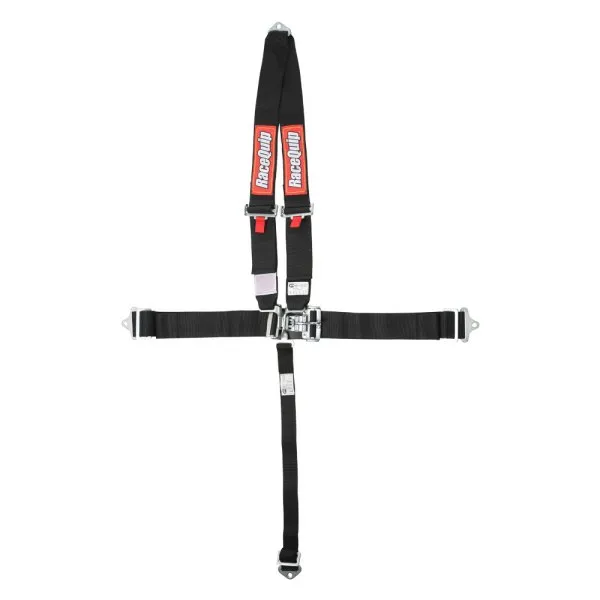

RaceQuip’s Latch & Link V-Style auto racing harness set has shoulder belts that attach to a single mount point behind the seat, thus forming a "V" shape. Sometimes also referred to as 4-Point belts, these sets are manufactured using premium 3" polyester webbing and drop forged steel hardware to exceed the SFI 16.1 rating. Shoulders adjust from 26" to 40" and the lap belt adjusts from 20" to 60".

All RaceQuip 713 series belts come as a "pull down lap" design, which means that the lap belts must be pulled down and away from the center latch & link buckle mechanism to tighten. All RaceQuip Latch & Link motorsports harness sets are distinguished by a pivoting "hammer," called a Duckbill, which is located on the lap belt and locks all of the belts into place by snapping down into a detent. Both shoulder belts and the sub-belt are hooked over the link; the link is inserted into the latch on the lap belt; the Duckbill is then brought down into and over the link, securely holding all of the pieces in place.

Since RaceQuip seat belt sets are "double adjustable", lengths are simply adjusted on either end for ease of installation. Using the included three bar slide you can mount the belts by either wrapping them around a rollbar or by bolting them in place with the supplied ends - except shoulders, they have a bolt on end sewn in place. Snap hook ends and eyebolts are sold separately if the user wishes to install belts in that manner.
